Explain Aluminium Extrusion Junction Boxes IN Detail

by Mr. LU

YONGUCase provides electronic extrusion profie junction boxes. We have two type extruded profie box, one-piece type and split type junction boxes. These extrusion junction boxes are suitable for common PCB sizes in the market. Next, let'sl explain their differences and frequently asked by customers.



Project Features

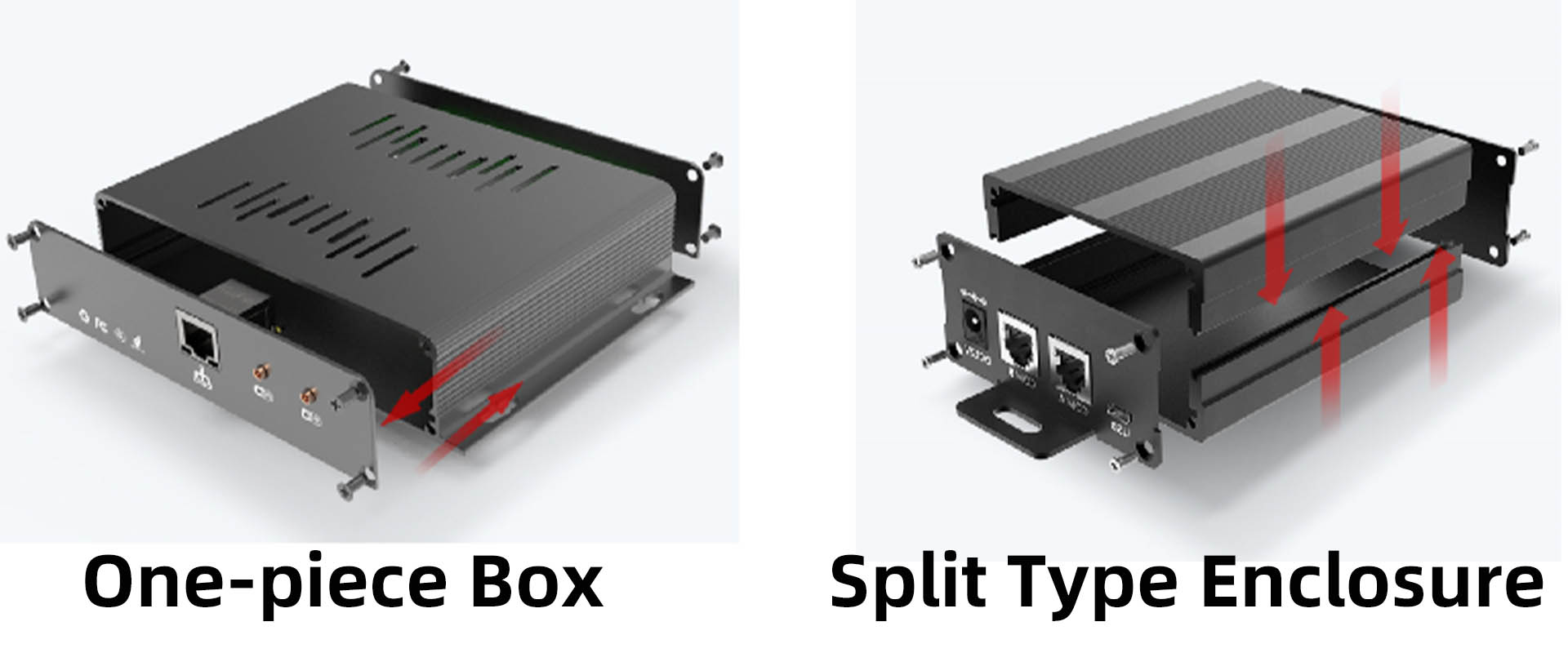

One-piece Type Junction Box All-in-one J series
Split Type A cavity is formed by assembling 2 or more profiles
Profiles are available with mounting ears or without Installation holes can be opened as required to fix the shell on the wall or ceiling. and so on
The baffle can be bent, or flat Bending is to open mounting holes
Most of the interior have installation slots easy to install circuit boards, and aluminum alloy plates can also be inserted as linings
Profiles are available with mounting ears or without Installation holes can be opened as required to fix the shell on the wall or ceiling. and so on
The baffle can be bent, or flat Bending is to open mounting holes
Most of the inside have installation slots Convenient to install circuit boards, and aluminum alloy plates can also be inserted as linings
Profiles are available with mounting ears or without Mounting holes can be opened as required to fix the housing on the wall or ceiling. and so on
The baffle can be bent, or flat The bend is to open the mounting hole
Most of the interior have installation slots Easy to install circuit boards, and aluminum alloy plates can also be inserted as linings



Basic Requirements For Structural Design

  • Bend the ear opening as far as possible according to the size of the stock
  • The opening of the shell with heat dissipation teeth should be careful, which will affect the installation of the joint.
  • There are three types of panel mounting screws: M2.5, M3, and M4 according to the bottom hole of the housing.
  • The one-piece J series generally cannot use riveting studs to install the circuit board, and copper studs are recommended.
  • For the split type H series, pay attention to the installation line on the side when opening holes on the side.



Surface Treatment Precautions

  • Surface treatment includes: sandblasting, brushing, oxidation coloring.
  • Sandblasting: there are ordinary, fine sandblasting (expensive)
  • Oxidation colors: black, silver white, iron gray, and others, gold, blue, red.
  • The oxide layer will be insulating, requiring electromagnetic shielding, and requiring electrical conduction to remove the oxide layer in key places, laser removal, or milling.
  • The silver-white oxide surface can be laser black, but it should be marked in the oxidation diagram, because laser black requires a thick (expensive) oxide layer. Moreover, the laser black time is long, and the pattern cannot be large.




Processing Technology Characteristics

  • The stock baffle generally has a die, and the shape has changed. It is necessary to remind the engineering drawing to indicate it (pay attention to the bending baffle).

  • Screw holes, through holes check customer requirements, recommend customers to adopt the company's standard (cost saving, fast delivery).

  • The spot opening is processed by cnc (milling), and the minimum inner fillet is R1.

  • For large quantities of baffles, it is recommended to open the die, and there will be small rounded corners. For small and medium batches (hundreds of pieces) laser cutting, square holes can be at right angles.

  • For the deformed shell, the shape correction process can be added.

FAQ

Shielded electromagnetic, how to WiFi, Bluetooth? Using a functional module with an external antenna.
What is the waterproof and dustproof rating? Not waterproof, against large particles, (0.2 size particles)
Will it fade? Indoors, it will not fade for 35 years, and it is more weather-resistant than ordinary spray paint outdoors. It can be hard oxidized to thicken the oxide layer. (expensive)
oxide thickness? Alumina thin layer, its thickness is 5-30 microns, and the hard anodized film can reach 25-150 microns.
How is the circuit board fixed? Slots, fixed by pressure riveting studs, fixed by copper posts, fixed by silica gel.
How is the machining accuracy? Aperture, hole spacing, ±0.05mm for one processingOther ±0.1~±0.15mm
Can you open the mold? Can open extrusion dies, punching dies. The time ranges from 14 days to 1 month. The cost of extrusion die starts from $ 635. The punching die is about 1,000 per discharge.



Finally, if you are interested in the above, welcome continue to read other BLOG, you will learn more knowledge about aluminum enclosures.
